Deep water discovery

Jerry ROV - Compact Inspection & Reconnaissance

  • COMPACT 4.5 KG INSPECTION-CLASS ROV
  • UP TO 100 M OPERATING DEPTH
  • 8 VECTORED THRUSTERS
  • 4K UHD IMAGING WITH LIVE STREAMING

BENZZ TECHNOLOGIES PRIVATE LIMITED

JERRY ROV: Compact Inspection and Reconnaissance ROV

JERRY ROV is a compact, portable underwater ROV for close-range inspection in shallow and confined water. It weighs about 4.5 kg, works to 100 m, streams 4K video live and uses eight vectored thrusters for precise movement around hulls, tanks, dams and fish cages.

DEPTH

100 m

8 VECTORED

THRUSTERS

4K UHD

VIDEO

LITHIUM-ION

BATTERY TYPE

360° Omni

DIRECTIONAL MOVEMENTS

4K LUMENS

LED FLOODLIGHTS

100 WH

BATTERY CAPACITY

4K UHD, 1/2.3 CMOS

CAMERA SENSOR

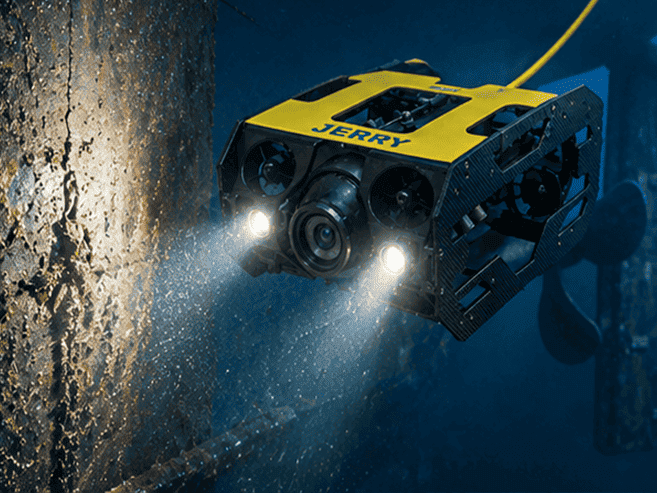

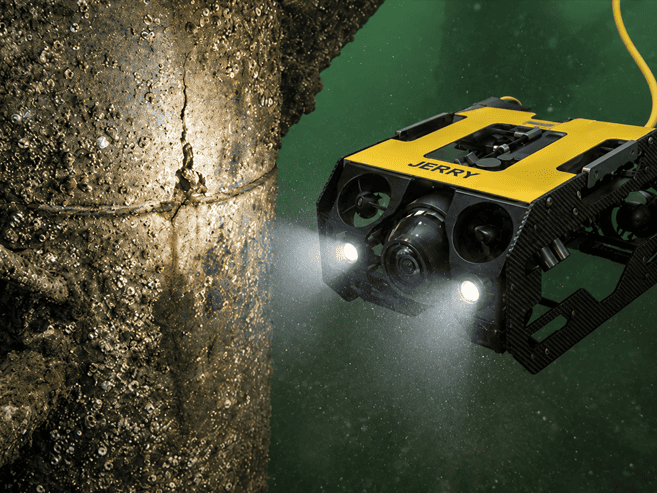

GALLERY

SPECIFICATION

Technical Specification

VEHICLE

Model
JERRY ROV
Type
Compact Inspection-Class Underwater ROV
Application
Inspection, Survey, Aquaculture, Marine Research
Dimensions
380 mm (L) × 267 mm (W) × 165 mm (H)
Weight in air
4.5 kg

PROPULSION & DEPTH

Thrusters
8 Vectored Thrusters
Maximum Depth
100 m
Cable (Tether)
200 metres

NAVIGATION

Navigation & stability
IMU, depth sensor, Compass, Temperature Sensor

POWER

Battery Type
Lithium-ion
Battery capacity
100 Wh
Nominal voltage
21.6 V
Maximum charging voltage
25.2 V
Max. charging current
5 A

CAMERA & LIGHTING

Camera Sensor
4K UHD, 1/2.3" CMOS
LED lighting
4,000 Lumens
FOV
150°
Video
4K UHD at 30 FPS
Storage
128 GB Storage

Key Applications

Compact underwater capability for inspection, monitoring, rescue support and research.

Underwater Inspection

Close-range visual inspection of submerged structures, equipment and confined underwater areas.

Know more

Ship Hull Inspection

Examination of hull surfaces, propellers, rudders, sea chests, corrosion and marine growth.

Know more

Tank and Reservoir Inspection

Inspection of water tanks, industrial reservoirs, sumps and submerged chambers without draining them.

Know more

Aquaculture Monitoring

Monitoring fish cages, nets, anchors, fish behaviour, biofouling and underwater conditions.

Know more

Search and Rescue Support

Rapid underwater observation for locating missing persons, submerged objects and potential hazards.

Know more

Evidence and Object Location

Identification of submerged vehicles, tools, equipment and other objects in restricted or unsafe waters.

Know more

Port and Harbour Inspection

Inspection of jetty piles, quay walls, mooring structures and harbour infrastructure.

Know more

Bridge and Dam Inspection

Visual assessment of bridge piers, dam walls, intake structures and submerged foundations.

Know more

Environmental Monitoring

Observation of aquatic habitats, pollution, waste deposits and changes in underwater conditions.

Know more

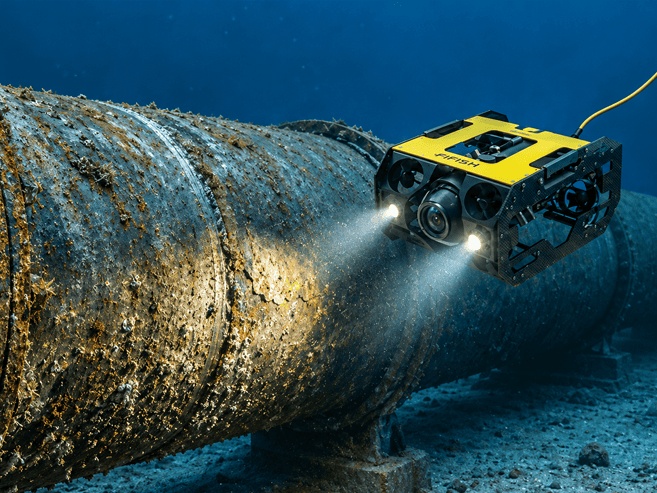

Pipeline and Cable Inspection

Inspection of shallow-water pipelines, cables and associated underwater infrastructure.

Know more

Marine Research and Education

Underwater observation, habitat documentation, training and practical marine research activities.

Know more

Confined-Area Operations

Inspection of narrow, difficult-to-access or hazardous underwater locations while reducing diver risk.

Know more

TALK TO US

Discuss your
operational requirement

Send us the depth, the payload and the environment.
Our engineers will come back with a configuration and an indicative timeline.

Read how we handle your data in our Privacy Policy.

FAQ

Frequently asked questions

What is JERRY ROV?

A compact, portable inspection ROV for shallow and confined underwater work up to 100 m.

How much does JERRY ROV weigh?

About 4.5 kg in air, so one person can carry and launch it.

What can JERRY ROV inspect?

Ship hulls, tanks and reservoirs, jetty piles, bridge piers, dam walls, shallow pipelines and aquaculture cages.

How is JERRY different from INDUS ROV?

JERRY is smaller and lighter for work up to 100 m. INDUS goes deeper, carries more payloads and can run on shore power.

Does JERRY ROV stream live video?

Yes. It streams 4K UHD video live to the operator.
